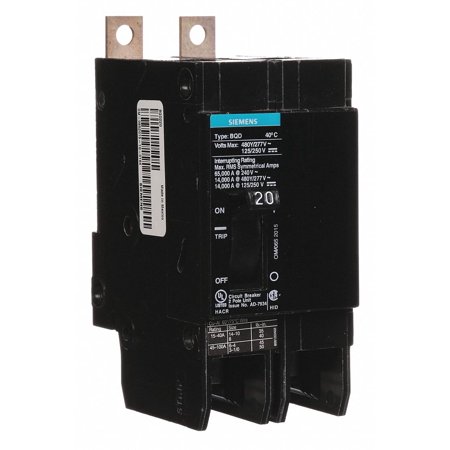

BQD220

Miniature Circuit Breaker Amps 20 A AC Voltage Rating 480V AC Circuit Breaker Type Standard Number of Poles 2 DC Voltage Rating 125/250V DC Circuit Breaker Actuator Toggle Circuit Breaker Mounting Style Bolt On Compatible Panelboard/Load Center Series P1 Phase Single Series BQD Max. AIR Rating 14kA at 480V AC For Use With Siemens P1 Panelboards Terminal Connection Lug Frame Size 100A/BQD Length 4.49 in Width 2 in Depth 2.7 in Max. Operating Temp. 104 Degrees F.
